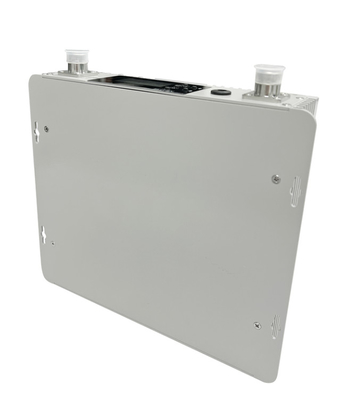

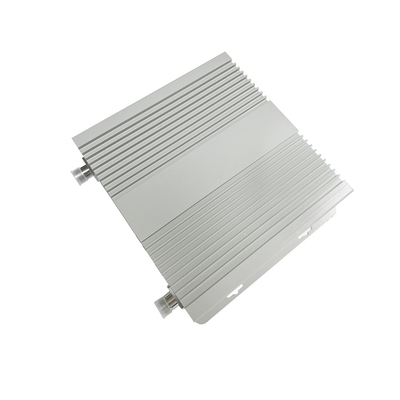

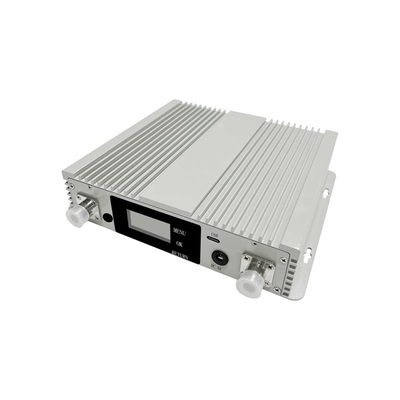

4G+5G 1800+3500MHz Booster Band Selective Repeater System Booster signal 5g Cell Phone Repeater

5 stuks
MOQ
$320-338
Prijs
4G+5G 1800+3500MHz Booster Band Selective Repeater System Booster signal 5g Cell Phone Repeater
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Frequentiebereik: 1800 MHz+3500 MHz
1800MHz bandbreedte: Ondersteunt 2 subbanden Van 0,2 tot 20MHz Bandbreedte aangepast
Spurious Emission (Falsche uitstoot): 9 kHz-1 GHz: -36 dBm, 1 GHz-12.75 GHz: 30 dBm
EVM: 8%
uitgangsvermogen: UL: 17±2 dBm, DL:20±2 dBm
Gewin: UL:68± 3 dB dB, DL:72± 3 dB
Type aansluiting: N-vrouwelijk
VSwr: ≤1.8
Basis informatie
Plaats van herkomst: Guangdong China
Merknaam: ATNJ
Certificering: CE,ROHS,CCC
Modelnummer: DS-DN
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Neutraal standaardpakket
Levertijd: 45 dagen
Betalingscondities: T/T, Paypal, Western Union
Levering vermogen: 10000
Productomschrijving

Digital 1800+3500Mhz band selective repeater system



ATNJ Digital RF repeater with industrial design, Special for mobile provider need, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ Digital RF repeater is easy to install and maintain,which could help signal providers get fast solution.



Product Features:

1. Digital bandwidth-adjustable features allow for seamless adaptability to different frequency bands.

2. LCD display the input/output signal strength.

3. Auto isolation detection.

4. Improve any three mobile networks at the same time.

5. Built-in Auto Gain Control (AGC)& Auto Level Control (ALC).

6. Center frequency movable.

7. OMS Lite for remote/local control and monitoring(Optional)

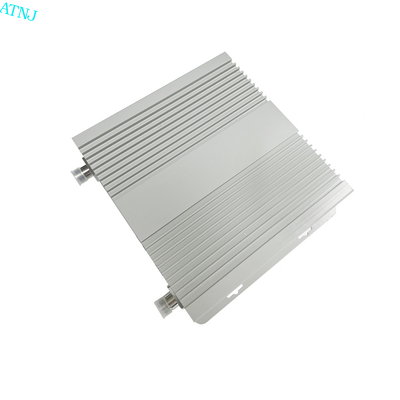

4G+5G 1800+3500MHz Booster Band Selective Repeater System Booster signal 5g Cell Phone Repeater 0

Item Technical Specifications
Uplink Downlink

Frequency Range

LTE1800 MHz 1710-1730MHz 1805-1825MHz
1745–1765MHz 1840–1860MHz
3500 MHz 3400–3600MHz 3400–3600MHz
Bandwidth 1800 MHz 20*2MHz
RF Carriers ARFCN Filtering Digital
Gain 68± 3 dB 72± 3dB
Gain control range 30dB/1dB 30dB/1dB
Minimum Input power ≥ -90dBm
Gain Flatness / PB Ripple ≤8dB
Max Output power 17± 2dBm 20± 2dBm
Automatic Level Control ≥ 25dB ≥ 25dB
Noise Figure ≤ 8dB

EVM

1800MHz ≤8
3500MHz≤3.5
Group Delay ≤ 6 µs
ACPR ≤ -36dBc
Error Vector Magnitude ≤ 8%
VSWR ≤ 2.5
Impedance 50 Ω

Out of Band Gain(1800MHz)

2,5 £ f_offset_CW< 5,0 MHz ≤60 dB
5,0£f_offset_CW<10,0 MHz ≤45 dB
10,0 MHz £ f_offset_CW ≤35 dB
Connectors Type N-Female Type
Power Supply DC 5V5A
Power consumption ≤ 20W
Operating temperature range -25°C to +55°C
Dimensions 234*230*52 mm
Storage temperature range -40°C to +85°C

Control &

Monitoring

Local Via USB WI FI
Remote MODEM(Optional)

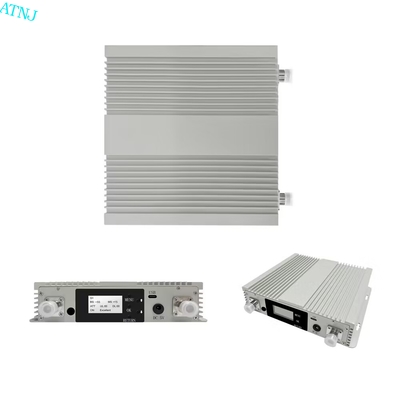

4G+5G 1800+3500MHz Booster Band Selective Repeater System Booster signal 5g Cell Phone Repeater 1

Applications:

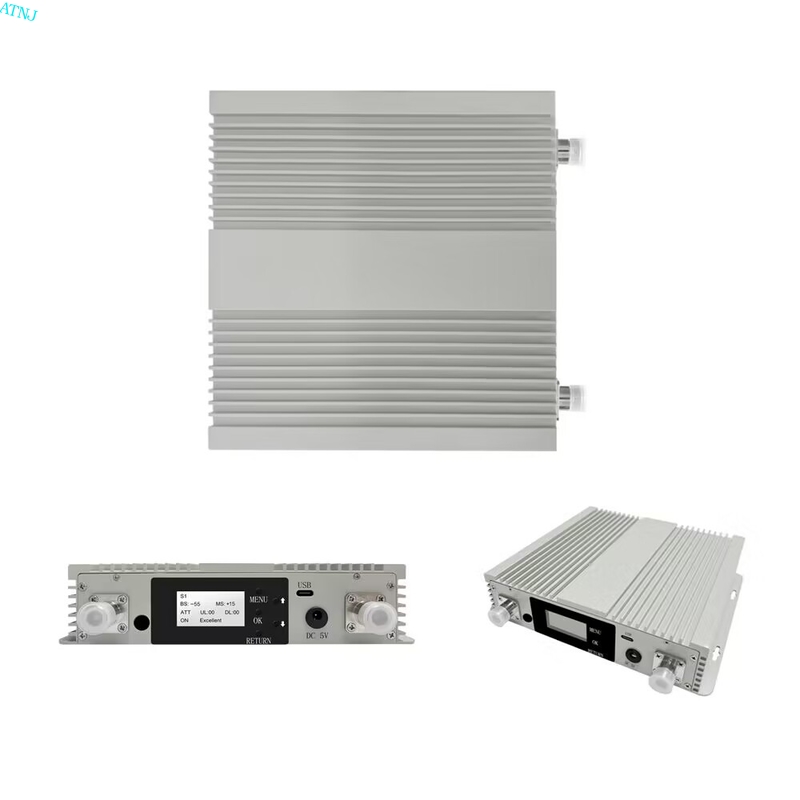

4G+5G 1800+3500MHz Booster Band Selective Repeater System Booster signal 5g Cell Phone Repeater 2



Customization:

Hello, welcome to ATNJ custom service for digital band selective repeater. Our model number is DS-W1. This product is from Guangdong, China, with certification of CE,ROHS,CCC. The minimum order quantity is 5, and the price is $280-300. We provide neutral standard package for delivery, and the delivery time is 5-10 days. We accept payment of T/T,Paypal,Western Union. Our supply ability is 10000. The connector type is N(Female), and the noise figure is ≤5dB. The operation temperature is -25℃~+55℃, and the output power is 17-20dBm. The power supply is DC 24V/5A.



Support and Services:

Mobile Signal Repeater offers technical support and services to ensure customers get the most out of their product. Our technical support team is available 24/7 to answer any questions and help troubleshoot any issues. We also offer a variety of services, including installation, maintenance, and repair. Our team of experts can provide advice on how to best utilize the Mobile Signal Repeater in your particular environment. We strive to provide the best customer service and ensure your satisfaction with our products.
