30dBm N77 MIMO Band Repeater 3700-3980MHz 2T2R

30dBm N77 MIMO Band Repeater 3700-3980MHz 2T2R

Merknaam:	ATNJ
Modelnummer:	DS-30-N77
MOQ:	5 stcs
Prijs:	USD+2200+PCS
Betalingsvoorwaarden:	T/T, Western Union, PayPal, Alibaba, Bankoverdracht.
Toeleveringsvermogen:	1000+eenheid+per dag.

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

CHINA

Certificering:

CE,ROHS，CCC，TUV,BV， ISO

Document:

Type:

DS-30-N77

3800 mHz frequentiebereik:

3700-3980 MHz (verstelbaar)

Verdienen:

UL: 70 ± 2 dB, DL: 80 ± 2 dB

uitgangsvermogen:

UL: 20 ± 2 dBm, DL: 30 ± 2 dbm

Ruisfiguur:

VSWR:

Stroomvoorziening:

AC 110/220 V, 50/60 Hz

Verpakking Details:

Standaard neutrale verpakking

Levering vermogen:

1000+eenheid+per dag.

Markeren:

N77 MIMO band repeater 30dBm

3700-3980MHz band selective repeater

2T2R MIMO repeater with warranty

Productomschrijving

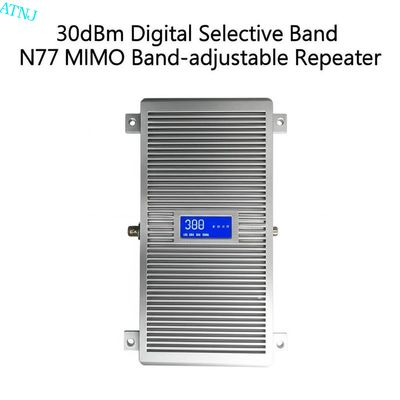

30dBm Digital Selective Band N77 MIMO Band-adjustable Repeater

Key Features

Digital bandwidth-adjustable features allow for seamless adaptability to different frequency bands
Supports 2T2R MIMO function with real speed test up to 600+Mbps (MIMO)
5G integrated design for easy deployment
Built-in Auto Gain Control (AGC) & Auto Level Control (ALC)
Built-in 5G base band synchronous detection module (SDM) for accurate synchronization
Configurable 5G TDD uplink and downlink timeslot format through software
OMS Lite for remote/local control and monitoring

Technical Specifications

Parameter	Specification
P/N	DS-30-N77 \| N77 (2T2R)
Frequency Range	Uplink: 3700 - 3980 MHz (adjustable) Downlink: 3700 - 3980 MHz (adjustable)
Number of Sub-bands	1
Bandwidth	≤ 100 MHz (adjustable)
Max. Gain	Uplink: 70±2 dB Downlink: 80±2 dB
Manual Gain Control	31 dB in step of 1 dB
Automatic Gain Control	≥ 20 dB
Gain Flatness (per sub-band)	≤ ±3 dB (peak-to-peak)
Max. Input Power Without Damage	0 dBm
Output Power	Uplink: 20±2 dBm Downlink: 30±2 dBm
Out of Band Gain	5,0≤f_offset_CW < 10,0 MHz: ≤45 dB 10,0 MHz≤f_offset_CW: ≤35 dB
Spurious Emission	9kHz~1GHz: ≤ -36dBm 1GHz~12.75GHz: ≤ -30dBm
ACRR	±100MHz: ≤-36dBc/30KHz ±200MHz: ≤-40dBc/30KHz
EVM	≤ 3.5%
Frequency Stability	≤ ±0.01 ppm
Noise Figure	≤ 8dB
VSWR	≤ 2
System Delay	≤ 3.5 ㎲

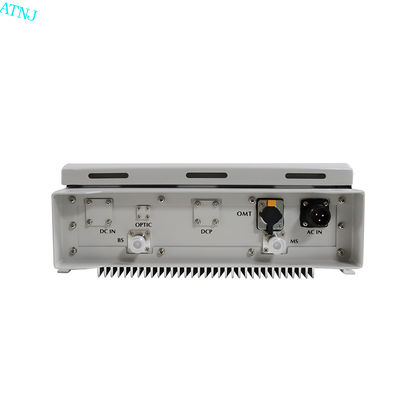

RF Connector	N-Female
Impedance	50 Ω
Power Supply	AC 110/220 V, 50/60 Hz
Power Consumption	200W
Dimensions	450360205 mm
Weight	≤ 10kg
IP Rating	IP65
Operating Temperature	-25 to 55 ℃
Control & Monitoring	Local: Via RJ45 Remote: Via Wireless Modem (optional)
